Q43-63
Dongfangsheng

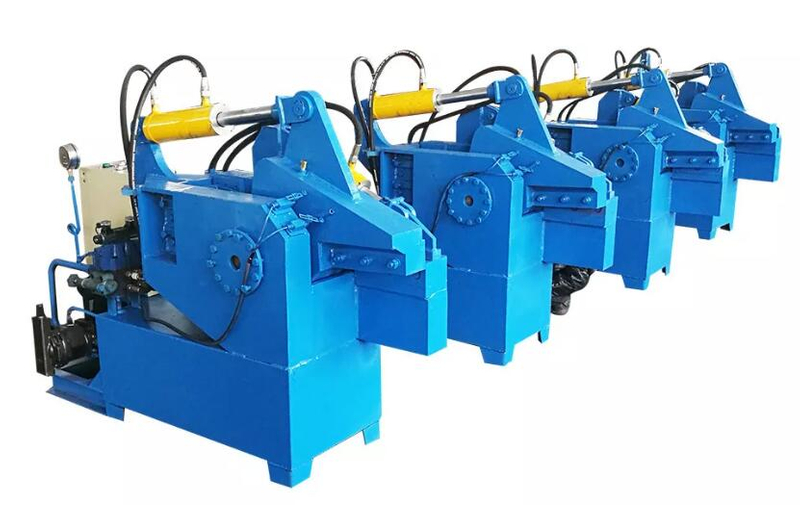

Q43 series alligator metal shears are applied in recycling companies, automobile dismantling plants, smelting and casting industries to cold shear all shapes of profile steels and all kinds of metal into qualified furnace feed materials.
Hydraulic driving, easy operation, easy maintenance
Working blade length: 400mm、600mm、700mm、800mm、1000mm、1200mm。The shear with over 700mm knife edge can be used to shear waste car
No requirements of foundation bolts for installation, the diesel may be used for driving at the place without power supplying
Model | Largest Shear Force(ton) | Max Press Force(ton) | Max Blade Opening(mm) | Balde Length(mm) | Shearing Frequence (time/min) | Material Size(mm) | Motor Power |
Q43-63 | 630 | 120 | 180、250、320 | 400、600、800 | 8-10 | 30*30&35 | 7.5 |
Q43-100 | 1000 | 160 | 280 | 600 | 8-10 | 40*40*45 | 7.5（11） |
Q43-120 | 1200 | 200 | 280 | 600 | 8-10 | 50*50&50 | 15 |
Q43-130 | 1300 | 200 | 320 | 700 | 8-10 | 50*50&55 | 15 |
Q43-160 | 1600 | 250 | 320 | 700 | 8-10 | 55*55&63 | 18.5 |
Q43-200 | 2000 | 300 | 380 | 800 | 8-10 | 70*70&75 | 22 |
Q43-250 | 2500 | 380 | 480 | 1000 | 8-10 | 80*80&85 | 30 |
Q43-315 | 3150 | 380 | 650 | 1200 | 8-10 | 90*90&95 | 37 |
Q43-400 | 4000 | 420 | 750 | 1500 | 8-10 | 100*100&110 | 44 |
Q43-500 | 5000 | 420 | 850 | 1800 | 8-10 | 110*110&120 | 60 |
Q43-630 | 6300 | 420 | 250 | 1800 | 8-10 | 120*120&13 | 37+15 |
Jiangsu DONGFANG Hydraulic Co., Ltd. locates at Jiangyin city at the south bank of golden river with beautiful landscape, comfortable climate, convenient land and water traffic.
Our company is an enterprise specialized in producing the renewable resources recycling equipmentwith rich experience of professional design and production. Leading products: Y81 series metal hydraulic baler, Y82 series metal & non-metal hydraulic baler, Y83 series hydraulic briquetting press, Y32 series four- colume hydraulic press, Q43 series alligator metal shear, Q15 series square sheet shears, EPM series waste paper baler etc. more than a dozen major series of hundreds of varieties.
Our company always takes the quality and credit standing as the first, we own over 10 national patents, keeps on innovation of technology, supplies customers with the very professional service. We are confirmed with ISO9001 quality system and CE quality system.
