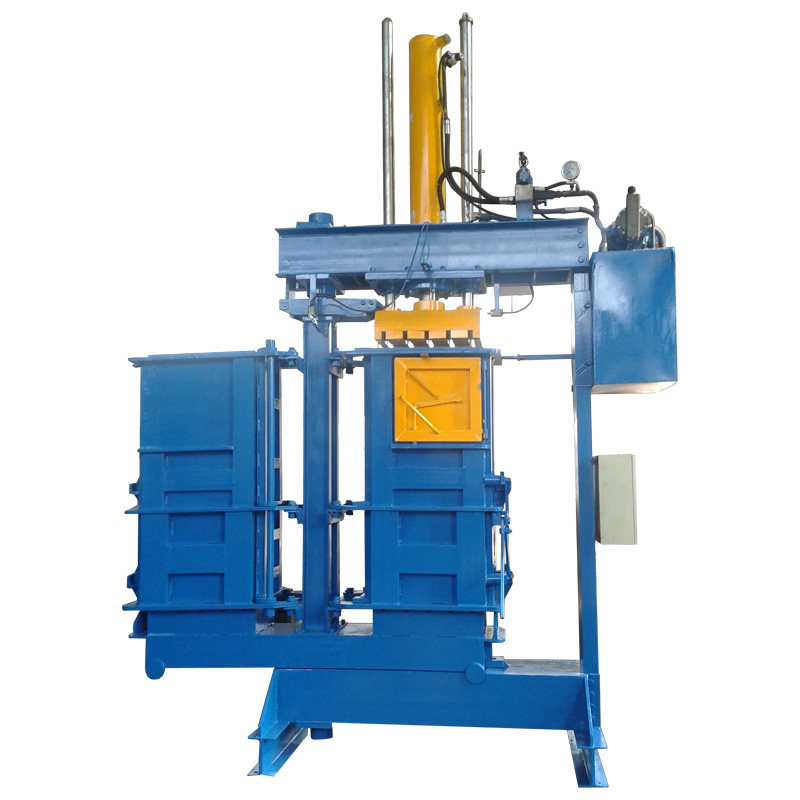

Y82S-63YF
Dongfangsheng
A twin-chamber baler efficiently compacts recyclable materials into dense bales. Its dual-chamber design enables continuous loading, making it ideal for industries with diverse waste streams. A popular variant, the two-lifting-chamber baler, is widely used in the textile industry for fabric waste. Combining versatility and productivity, these balers are essential in retail, manufacturing, and recycling sectors.
Technical parameters:
| Serial number | Name | Y82S-63YF Two chamber rotation textile baler | |
| Motor | model | Y160M-4 | |
| Power system | power | 7.5KW | |
| Power spec | 3 PH ,50 /60 HZ | ||
| Hydraulic system | Oil pump | model | HY40Y-RP |
| Rated displacement | 40ml/r | ||
| Rated pressure | 31.5MPa | ||
| System parameters | Main cylinder | Cylinder diametre | YG180/125 |
| Push force (ton) | 63 ton | ||
| Size of machine (L*W*H) | 3600mm*800mm*4500 | ||
| Dimension of the chamber (L*W*H) | 740mm*340mm*1490mm | ||
| Dimension of the bale (L*W*H) | 740mm*340mm*350mm | ||
| Bale weight | About 45-55kg | ||
| Bale discharging | Manual taking out the bale | ||
| Control method | Automatic buttons | ||
| Strapping way | Manual strapping | ||
Any problem, you can call usdirectly.
Jiangsu DONGFANG Hydraulic Co., Ltd. locates at Jiangyin city at the south bank of golden river with beautiful landscape, comfortable climate, convenient land and water traffic.
Our company is an enterprise specialized in producing the renewable resources recycling equipmentwith rich experience of professional design and production. Leading products: Y81 series metal hydraulic baler, Y82 series metal & non-metal hydraulic baler, Y83 series hydraulic briquetting press, Y32 series four- colume hydraulic press, Q43 series alligator metal shear, Q15 series square sheet shears, EPM series waste paper baler etc. more than a dozen major series of hundreds of varieties.
Our company always takes the quality and credit standing as the first, we own over 10 national patents, keeps on innovation of technology, supplies customers with the very professional service. We are confirmed with ISO9001 quality system and CE quality system.
