Y83 Vertical Type Aluminum Shavings Briquetting Press Equipment Factory Price

Applications
Y83 series Hydraulic briquetting press (Chip packing machine) is suitable for the aluminum alloy factory,steel casting factory,copper casting factory,etc.to compress and pack the aluminum chip,steel chip,iron chip and copper chips for melting down.It can replace the waste steel,pig iron,aluminum ingot and waste copper as row materials and reduce the fire loss.This equipment can press coldly the cast iron chip,steel chip,copper chip and aluminum chip into 3~6kg cylinder caky blocks,easy for transportation,furnace casting,during the whole course of which,the temperature adding and the additive or other craftwork are not needed.After the iron chip has been pressed,the densities reach 5~6T/m³.The machine can also adopt the domestic and imported hydraulic elements and electric elements fitted with the automatic feeding,weighting devices,etc.according to the customer’s requirement.The model Y83-500metal chip press block hydraulic machine is designed for copper material,the press block density reaches over 7T/m³,the machine is ideal to press and pack the lead and brass ideal products.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • Y83



Product Details

1.Product description:

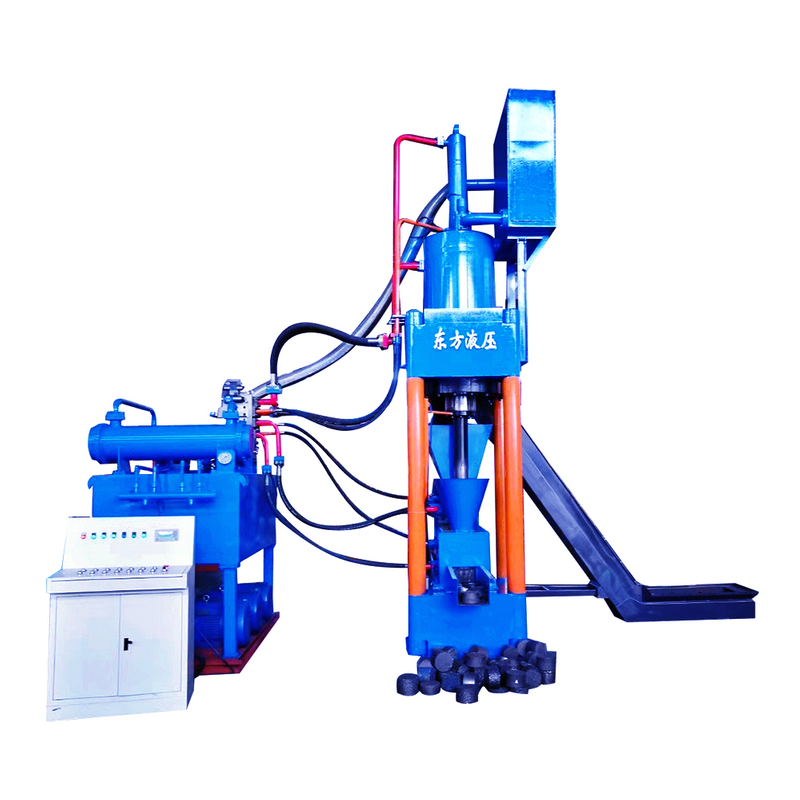

Y83 SERIES HYDRAULIC BRIQUETTING PRESS
Model Nominal Force (kn) Aux.Cylinder Press(kn) Power(kw) Production(kg/h) Bale Size(*H)(mm)
Y83-250 2500 60 30 1000~1500 90*(50~80)
Y83-360 3600 100 30 1200~2000 110*(50~80)
Y83-400 4000 100 30 1800~2600 120*(70~130)
Y83-500 5000 100 30 2000~3000 130*(70~130)
Y83-315 3150 100 30 1200~1500 100*(50~80)
Y83-630 6300 100 30 2200~3600 150*(70~130)


2.Applications:
Y83 series hydraulic briquetting press (Chip packing machine) is to melt down and compress metal chips into briquettes by cold pressing technology. Those briquettes are 3-6 kg each, and they can replace waste steel, copper, iron or aluminum as row materials, so it is benefit for reducing burning of metal. It is easy for store and transportation. It is no need to warm up, add additives or other craftwork during the whole progress of work. After pressing, the block's density can reach 5-6 Ton/M 3 (without any adhesive).

1.Coal powder/coal fine/coal dust
2.Charcoal powder/charcoal fine/charcoal dust
3.Gypsum/Desulfurization Gypsum/quicklime/slaked lime/
4.Activated carbon/carbon black
5.All kinds of metal powder/Manganese/magnesium/copper/iron
6.Iron oxide/aluminum oxide/clay
7.Some other type powder.

3.Our serivce:
24 hours online service
Enquiry will be replied in 2 hours
One year guarantee and lifelong maintenance.
Spare parts: supply one set of spare parts for free, tool box, operation book.
Free parts for any breakdown with convincing evidence
Any problem, you can call us directly.
