Y83W-500
Dongfangsheng
y83w500
Applications:

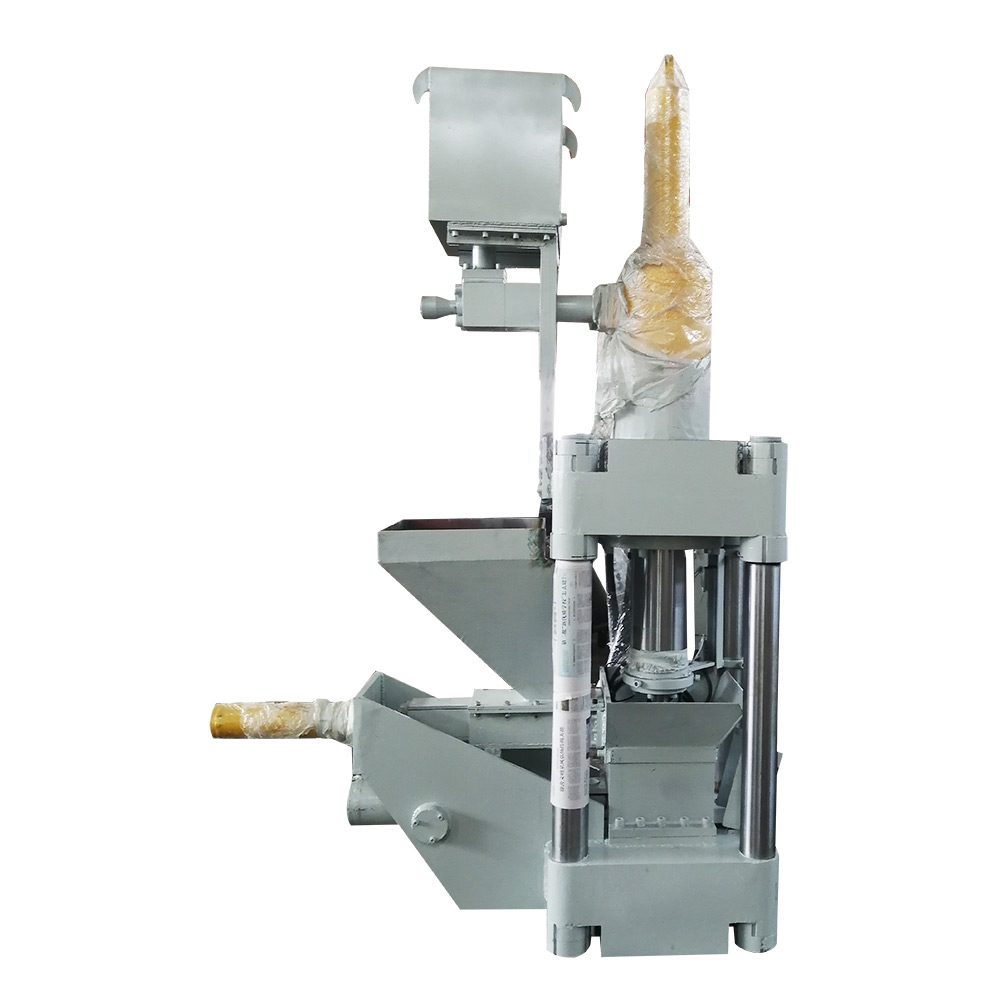

Y83 series of briquetting presses are applied to compress metal sawdust (steel, cast iron, aluminum & copper) into cylindrical briquets of high density to reduce burning loss in smelting, to make recycling & smelting easy & convenient. Cast iron sawdust, after pressed into briquets, can. It can also press wood sawdust into briquettes. The temperature adding and the additive or other craftwork are not needed.
Description:

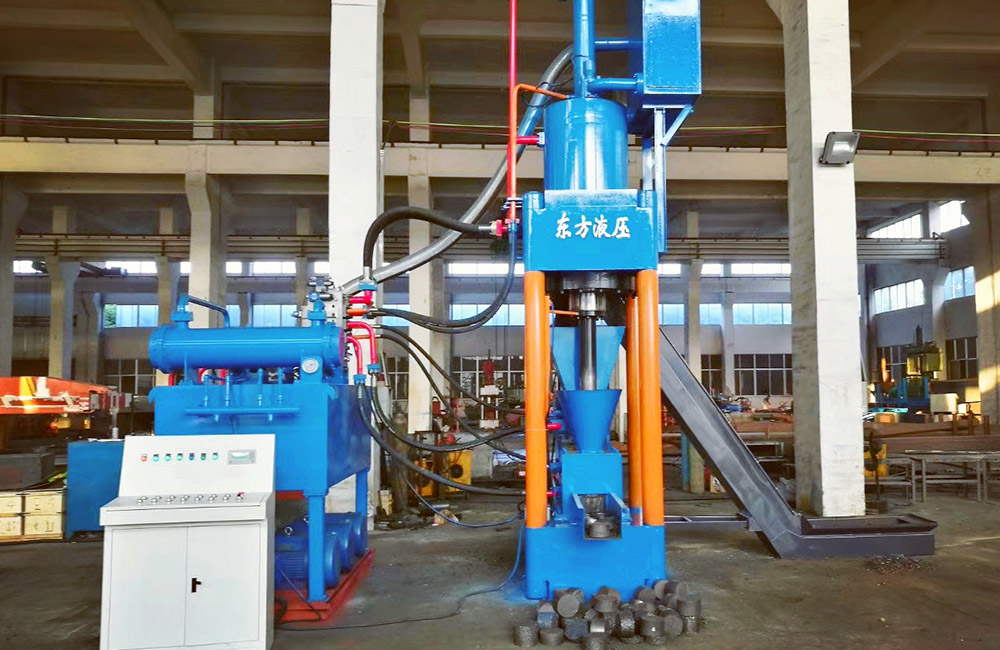

Metal chip briquetting machines are designed to make maximum use of metal scraps from soft metals to hard cast iron scraps. The vertical series of metal briquetting machine is used to compact machining scraps. The finished briquettes can be directly put into smelting furnaces. The process leads to enormous economic benefits both for companies and foundries.
Application:

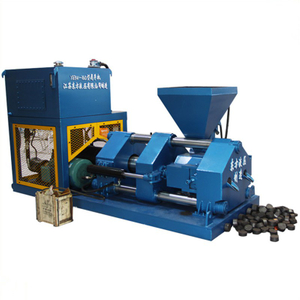

Horizontal series of metal chip briquetting machines is suitable to compress metal sawdust (steel, cast iron, aluminum and copper) into high-density cylindrical briquettes. This metal chip shaving press is used to reduce burning loss, and easy for recycling and smelting.
Features:
1) The metal chip briquetting machines is hydraulically driven. There's no vibration during working process. It's safe and reliable.
2) Simple installation equipment is needed.
3) The machine is controlled by PLC control: manual and automatic operations are available.
Technical parameters:
Model | Nominal Force（KN） | Power(kw) | Production (kg/h) | Bale Size(mm) |
Y83W-150 | 1500 | 22 | 600~900 | φ80×50-80 |
Y83W-250 | 2500 | 30 | 1000~1500 | φ90×50-80 |
Y83W-315 | 3150 | 30 | 1200~1600 | φ100×60-90 |
Y83W-360 | 3600 | 22*2 | 1500~2000 | φ110×70-100 |
Y83W-400 | 4000 | 22*2 | 1800~2600 | φ120×70-130 |
Y83W-500 | 5000 | 30*2 | 2000~3000 | φ130×70-130 |
Y83W-630 | 6300 | 30*3 | 2200~3600 | φ180×100-160 |
Y83W-800 | 8000 | 55*2 | 3600~4500 | φ200×140-180 |
Y83W-1000 | 10000 | 55*3 | 4500~5500 | φ240×200-250 |
Y83W-1250 | 12500 | 75+55*2 | 5500~7000 | φ250×200-250 |
Applications:
Y83 series of briquetting presses are applied to compress metal sawdust (steel, cast iron, aluminum & copper) into cylindrical briquets of high density to reduce burning loss in smelting, to make recycling & smelting easy & convenient. Cast iron sawdust, after pressed into briquets, can. It can also press wood sawdust into briquettes. The temperature adding and the additive or other craftwork are not needed.
Description:
Metal chip briquetting machines are designed to make maximum use of metal scraps from soft metals to hard cast iron scraps. The vertical series of metal briquetting machine is used to compact machining scraps. The finished briquettes can be directly put into smelting furnaces. The process leads to enormous economic benefits both for companies and foundries.
Application:
Horizontal series of metal chip briquetting machines is suitable to compress metal sawdust (steel, cast iron, aluminum and copper) into high-density cylindrical briquettes. This metal chip shaving press is used to reduce burning loss, and easy for recycling and smelting.
Features:
1) The metal chip briquetting machines is hydraulically driven. There's no vibration during working process. It's safe and reliable.
2) Simple installation equipment is needed.
3) The machine is controlled by PLC control: manual and automatic operations are available.
Technical parameters:
Model | Nominal Force（KN） | Power(kw) | Production (kg/h) | Bale Size(mm) |
Y83W-150 | 1500 | 22 | 600~900 | φ80×50-80 |
Y83W-250 | 2500 | 30 | 1000~1500 | φ90×50-80 |
Y83W-315 | 3150 | 30 | 1200~1600 | φ100×60-90 |
Y83W-360 | 3600 | 22*2 | 1500~2000 | φ110×70-100 |
Y83W-400 | 4000 | 22*2 | 1800~2600 | φ120×70-130 |
Y83W-500 | 5000 | 30*2 | 2000~3000 | φ130×70-130 |
Y83W-630 | 6300 | 30*3 | 2200~3600 | φ180×100-160 |
Y83W-800 | 8000 | 55*2 | 3600~4500 | φ200×140-180 |
Y83W-1000 | 10000 | 55*3 | 4500~5500 | φ240×200-250 |
Y83W-1250 | 12500 | 75+55*2 | 5500~7000 | φ250×200-250 |
Package detail: For small machine which will be shipped by LCL, we'll make wooden box package
For large machine, thin film packing and diretly loaded into container.
Shipping time: 10 days in stock, normally 30~40 work days.
Package detail: For small machine which will be shipped by LCL, we'll make wooden box package
For large machine, thin film packing and diretly loaded into container.
Shipping time: 10 days in stock, normally 30~40 work days.
Q1: Can the machine be customized to our yard size or material type?
A1:
Yes, absolutely. We offer full customization for our products— including machine size, blade length, cutting force, motor power and feeding hopper dimensions. Just let us know your scrap material type and daily volume, and we’ll recommend the best setup.
Q2: What materials is the machine suitable for?
A2:
Our machines are suitable for both ferrous and non-ferrous metals — including metal shavings, steel swarfs, brass chips, aluminum chips,etc.
Q3: What is the cutting force / power capacity?
A3:
We currently offer models with pressing force ranging from 150 tons to 3000+ tons, depending on your processing materials and production. We will help you choose the right model based on your daily output.
Q4: What's the price range?
A4:
Our pricing is very competitive compared to European brands, and we offer factory-direct pricing. Since all machines are customized, we usually provide a detailed quotation after confirming your requirements.
Q5: What is the lead time for production and delivery?
A5:
Normally 25–45 working days depending on the complexity of customization. We will provide you with a full production schedule once the order is confirmed.
Q6: Do you offer on-site installation or remote support?
A6:
Yes. We offer both options: on-site installation (available for select regions) or remote video guidance. Our technicians will support you step-by-step until the machine is running smoothly.
Q7: Do you provide spare parts or after-sales service?
A7:
Definitely. We provide a full set of spare parts with the machine, plus long-term support. Spare parts are always available for fast shipment if needed.
Q1: Can the machine be customized to our yard size or material type?
A1:
Yes, absolutely. We offer full customization for our products— including machine size, blade length, cutting force, motor power and feeding hopper dimensions. Just let us know your scrap material type and daily volume, and we’ll recommend the best setup.
Q2: What materials is the machine suitable for?
A2:
Our machines are suitable for both ferrous and non-ferrous metals — including metal shavings, steel swarfs, brass chips, aluminum chips,etc.
Q3: What is the cutting force / power capacity?
A3:
We currently offer models with pressing force ranging from 150 tons to 3000+ tons, depending on your processing materials and production. We will help you choose the right model based on your daily output.
Q4: What's the price range?
A4:
Our pricing is very competitive compared to European brands, and we offer factory-direct pricing. Since all machines are customized, we usually provide a detailed quotation after confirming your requirements.
Q5: What is the lead time for production and delivery?
A5:
Normally 25–45 working days depending on the complexity of customization. We will provide you with a full production schedule once the order is confirmed.
Q6: Do you offer on-site installation or remote support?
A6:
Yes. We offer both options: on-site installation (available for select regions) or remote video guidance. Our technicians will support you step-by-step until the machine is running smoothly.
Q7: Do you provide spare parts or after-sales service?
A7:
Definitely. We provide a full set of spare parts with the machine, plus long-term support. Spare parts are always available for fast shipment if needed.
